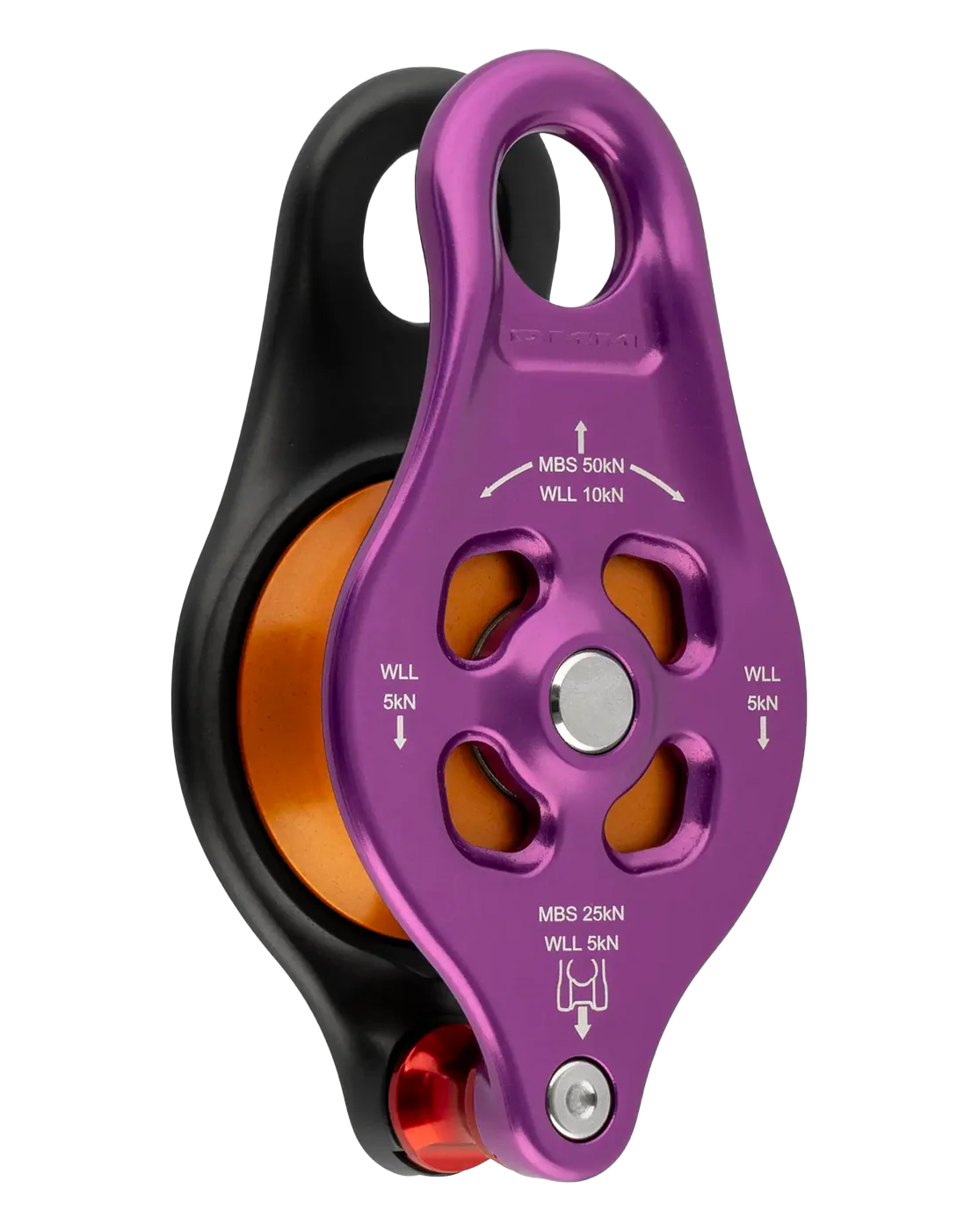

As an expert in rigging scenarios, I recommend the Pinto Rig 2 for its upgraded features. With a 38mm sheave and full strength attachments, it's suitable for up to 16mm ropes. Its fixed sideplate design and smooth rope-friendly fairleads make it easy to use, while sealed ball bearings ensure low maintenance. Increase lift height and enhance torsion tolerance with optional textile components.

FEATURES

• Full strength attachments at eye and becket provide a wide range rigging options
• Fixed sideplate design is easy to clip into and load onto tensioned ropes
• Hot forged and robust, with smooth rope and textile friendly fairleads and edges
• Connect directly in with textile components for extra versatility: increase lift height, minimise space required, or enhance tolerance to torsion
• Recessed sheave design helps rope feed smoothly from all angles
• Sealed ball bearings for high efficiency and low maintenance
• Optional spacer available separately for use with rope connection
• Tamperproof construction
• Made in Wales, and certified for peace of mind

MBS: 50kN (26kN Becket)

WLL: 10kN (5kN Becket)

Rope Max Diameter: 16mm Max
